Chamfering & Deburring Unit

Chamfering & Deburring Unit
Order No.
Code No.
VCF - 500
1023-001
VCF-500W
1023-002
VCF-500F
1023-003

VCF - 500
Accessory : Side Mill Cutter Insert SPUN 422

Practical
a. Universal Application.
b. Simplified operation.
c. Fast-Accurate-Rational
d. Time Saved


Chamfering & Deburring Unit

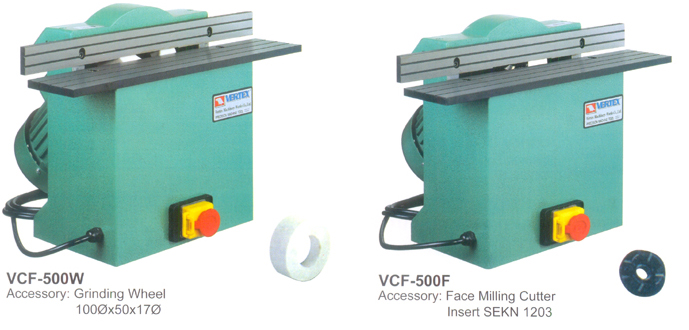

VCF - 500W
Accessory : Grinding Wheel
100Øx50x17Ø

Features for VCF-
1. Simplified operation, suitable for unskilled     personnel.
2. Easily to be bevelled for any length made of steel,     cast iron, nonferrous metals, plastics, acrylic ect.
3. 500 : With exchangeable carbide insents, knife can     be changed easily to decrease cost and increase     working ability.
4. 500W : With taper wheel or flange hot -processed     parts also can be bevelled or chamferred.
5. 500 F : Working base on surface milling principles,     the deburring processing surface is same as the     milling machine surface.

Chamfering & Deburring Unit
VCF - 500F
Accessory : Face Milling Cutter
Insert SEKN 1203

Technical Data

Space requirement
500
500W
500 F
500 x 320 m/m
500 x 440 m/m
500 x 220 m/m
Weight (kgs)
28.4
29.1
28.9
Voltage 3 Ø 220V or 1 Ø 110 V / 220V 50 Hz / 60Hz 3 Ø 380 V / 415 V
Motor output
0.7KW
Speed
3500 r.p.m.
Length of guide rails
500/m/m
500m/m
500m/m
Heigtht of bevel
0-3 m/m
Bevel angle
15° ~ 45°
(Changable)
45°
45°

Please Notify voltage & phase.
When you ordering C.E. mark requested.
