High Precision Boring Head Set

1 Scale 0.005mm Boring Capacity Ø8-Ø280

High Precision Boring Head Set

High Precision Boring Head Set
VBH 2084
* Good for high speed, high precision boring work.
* Made tool steel, high rigidity, no deformation
* Each dividing scale is 0.005mm, total stroke: 27mm
* Can Choose any taper(BT40, BT50, SK40, SK50) shank.
* Include 8 boring bars, range Ø8-Ø280mm.
* Boring bar size = Ø20-x 8pcs.
* Insert locking screw 8 x3 = 24 pcs
* Wrench x 6 pcs
* Hexa 6 wrench x 1 pcs

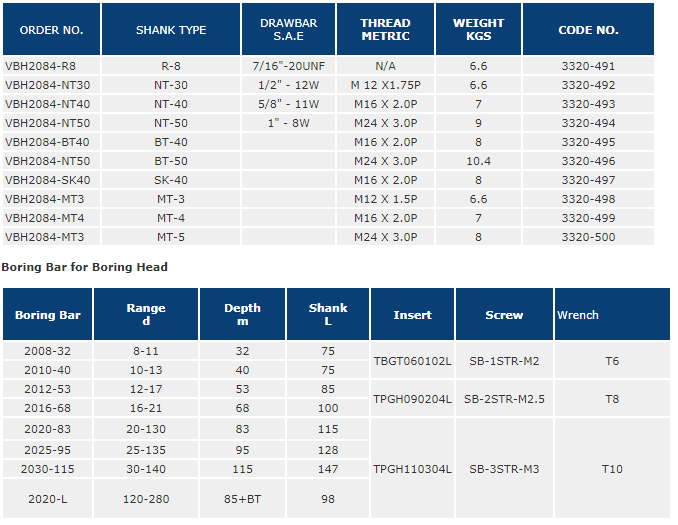

ORDER NO.

SHANK TYPE

DRAWBAR
S.A.E

THREAD
METRIC

WEIGHT
KGS

CODE NO.

VBH2084-R8
R-8
7/16"-20UNF
N/A
6.6
3320-491
VBH2084-NT30
NT-30
1/2" - 12W
M 12 X1.75P
6.6
3320-492
VBH2084-NT40
NT-40
5/8" - 11W
M16 X 2.0P
7
3320-493
VBH2084-NT50
NT-50
1" - 8W
M24 X 3.0P
9
3320-494
VBH2084-BT40
BT-40
M16 X 2.0P
8
3320-495
VBH2084-NT50
BT-50
M24 X 3.0P
10.4
3320-496
VBH2084-SK40
SK-40
M16 X 2.0P
8
3320-497
VBH2084-MT3
MT-3
M12 X 1.5P
6.6
3320-498
VBH2084-MT4
MT-4
M16 X 2.0P
7
3320-499
VBH2084-MT3
MT-5

M24 X 3.0P
8
3320-500

Boring Bar for Boring Head

Boring Bar

Range
d

Depth
m

Shank
L

Insert

Screw

Wrench
2008-32
8-11
32
75
TBGT060102L
SB-1STR-M2
T6
2010-40
10-13
40
75
2012-53
12-17
53
85
TPGH090204L
SB-2STR-M2.5
T8
2016-68
16-21
68
100
2020-83
20-130
83
115
TPGH110304L
SB-3STR-M3
T10
2025-95
25-135
95
128
2030-115
30-140
115
147
2020-L
120-280

85+BT

98
