Lock - Fixed II Precision Machine Vise




Order No.
VMC-4
VMC-6
Lock - Fixed II Precision Machine Vise

* With the ability of lock-fixed III    2,3,4,5
* Use the semi-sphere segment    principle

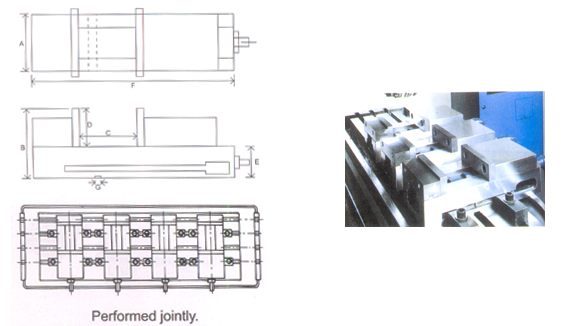

* When operate several vises
   (in a row) put on one
* machine bed, the operating situation    is showed as below.


Order No. A B C Open D E F G MEAS
Cuft
WEIGHT (Kg) Code No.
VMC-4 108 100 100 37 63 285 16 0.4 14.2 1002-185
VMC-6 156 120 142 46 74 368 16 1.1 29.8 1002-186

Compound Precision Vise
Compound Precision Vise
* Self centering. Suit for rough or irregular workpiece.
* Compact design.
* High Accuracy
* Super open capacity
* Suitable for irregular workpiece.
* Rapid and convenient centralizing.

Order No.
A
A1
B
C
Open
D
E
F
G
Kgs
Code No.
VCV-44
415
462
102
195
95
30
102
60
17.7
1002-240
