>> MILLING & GRINDING

Precision Sine Vise

Order No. SVC - 100
Code No. 2003-090


Precision Sine Vise Precision Sine Vise
The clamp Handle is placed under work piece.


Unit : mm
A
130
B
70
C
93
D
30
E
63
F
33
G
45
H
45
I
M5
J
100
Max. angle
46°
Weight(Kgs)
5.5

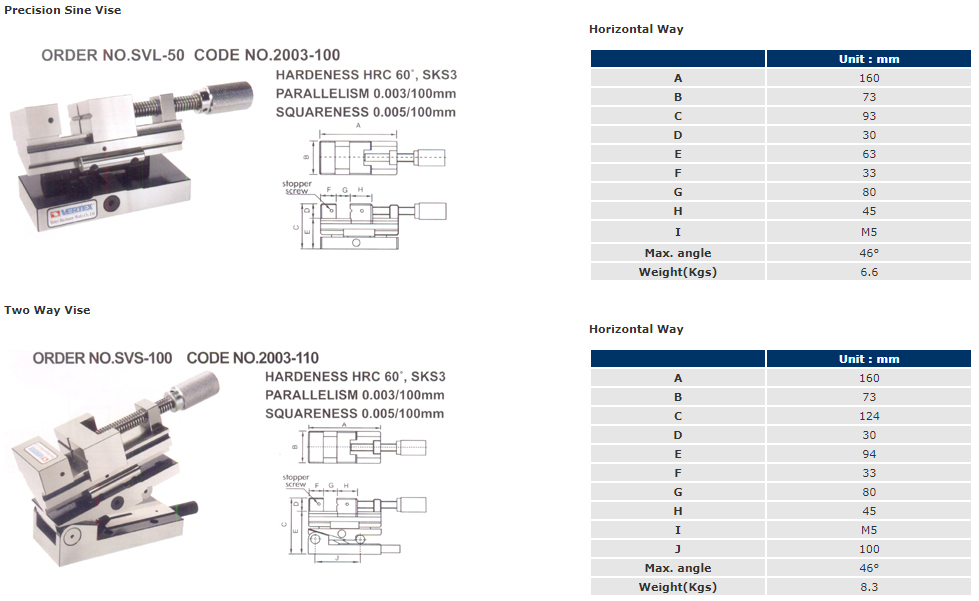

Precision Sine Vise
Precision Sine Vise Horizontal Way


Unit : mm
A
160
B
73
C
93
D
30
E
63
F
33
G
80
H
45
I
M5
Max. angle
46°
Weight(Kgs)
6.6

Two Way Vise
Precision Sine Vise Horizontal Way


Unit : mm
A
160
B
73
C
124
D
30
E
94
F
33
G
80
H
45
I
M5
J
100
Max. angle
46°
Weight(Kgs)
8.3

Modular Precision Machine Vise
Precision Sine Vise
Featuers

* High Accuracy
* Unlimited Clamping Range
* High Quality Alloy Steel
* High Clamping Pressure
* Each one is same
* Can be used multiple style
* No'length of height limitation
* No jaw life
* Low profile
* All vises are matched
* Swivel base be optional
ORDER NO.
VMP-4
VMP-5
VMP-6
VMP-6B
VMP-6C
VMP-7A
VMP-7B
VMP-7C
VMP-8A
VMP-8B
VMP-8C
VMP-8D
VMP-12C
VMP-12E
A
100
125
150
150
150
175
175
175
200
200
200
200
300
300
B
30
40
50
50
50
60
60
60
65
65
65
65
80
80
C
100
150
200
300
400
200
300
400
200
300
400
500
400
600
D
270
345
420
520
620
455
555
655
573
595
695
795
735
935
E
325
146
530
600
700
620
620
620
718
718
718
880
830
1030
F
35
40
50
50
50
58
58
58
70
70
70
70
78
78
G
75
96
125
125
125
145
145
145
170
170
170
170
195
195
H
78
78
90
89.4
89.4
97
97
97
114
114
114
113.4
120.4
120.4
I
16
16
16
16
16
16
16
16
16
16
16
16
16
16
KGS
7
18
29
29
33
38
43
48
65
69
74
79
115
135
CODE NO.
1002-190
1002-191
1002-192
1002-201
1002-202
1002-193
1002-194
1002-195
1002-196
1002-197
1002-198
1002-203
1002-204
1002-205
