  PRODUCTS

>> LATHE TOOLS

Quick Change Sets
This quick change tool post has a very rigid design and all components are hardened and ground to give you high repeatability and very good accuracies to .005mm. Saving of set up time as different tool holders can be used and change overtime can be reduced by using preset holders. A useful set for most lathes.

Quick Change Sets

Ordering No
Size
Set Contain
390300
Small
1 main post 390200, 2std turning tool hldr 390204,
1 vee holder 390208, 1 parting tool hldr 390212.
390301
Medium
1 main post 390230, 2std turning tool hldr 390234,
1 vee holder 390238, 1 parting tool hldr 390242.
390302
Big
1 main post 390260, 2std turning tool hldr 390264,
1 vee holder 390268, 1 parting tool hldr 390272.

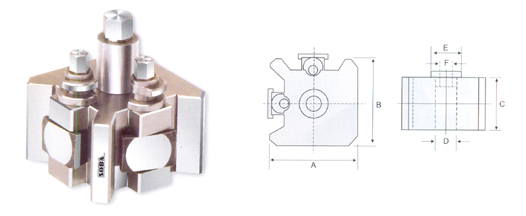

Quick Change Tool Posts
Quick Change Tool Posts

Ordering No
Main Post mm
Mounting
390200
60 x 60 x 38
2 Holders
390230
75 x 75 x 50
2 Holders
390260
100x 100x75
2 Holders

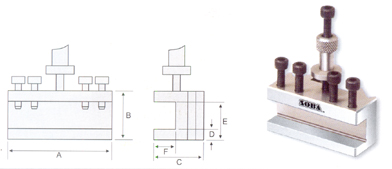

Individual Tool Holders
Turning Tool Holder Std
Individual Tool Holders
Ordering
No
A
B
C
D
E
F
mm
mm
mm
mm
mm
mm
390204
58
27.5
28
6
13.5
10
390234
73
35
32
8
17
14
390264
98.5
50
39.5
13
22
19

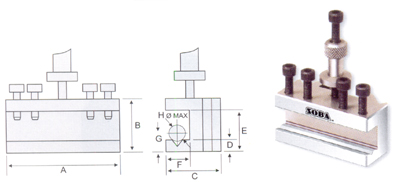

VEE Groove Holder
VEE Groove Holder
Ordering
No
A
B
C
D
E
F
G
H
mm
mm
mm
mm
mm
mm mm
mm
390208
58
27.5
28
8
13.5
10
13.5
13
390238
73
35
32
11
17
14
16
16
390268
98.5
50
39.5
12
22
19
22.5
19

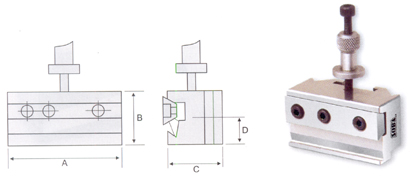

Parting Tool Holder
Parting Tool Holder
Ordering
No
A
B
C
D
mm
mm
mm
mm
390212
58
32.5
28
16.5
390242
73
48
32
27
390272
98.5
57
39.5
33.5

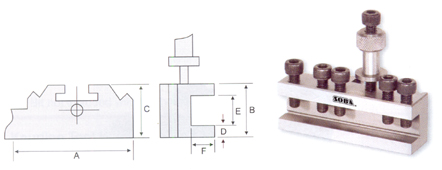

Extended Tool Holder

Turning Tool Holder Std
Extended Tool Holder
Ordering
No
A
B
C
D
E
F
mm
mm
mm
mm
mm
mm
390216
88
27.5
28
6
13.5
11
390246
98
35
32
8.5
17
13
390276
124
50
39.5
12.5
22
19

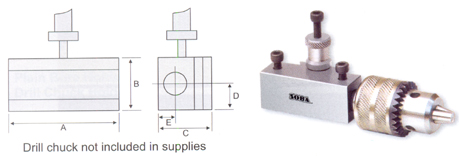

Plain Bore Holders
Plain Bore Holders


Ordering
No
A
B
C
D
E
F
mm
mm
mm
mm
mm
mm
390220
58
27.5
30
14
11
16
390250
73
35
36.5
17.5
12.5
19
390280
98.5
50
60.5
25
28.5
25.5

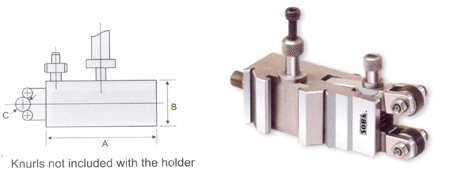

Adjustable Knurling Tool Holder

Adjustable Knurling Tool Holder

Ordering
No
A
B
C
D
E
F
mm
mm
mm
mm
mm
mm
390224
60
33
75
16
5
20
390264
75
48
100
19
5
40
390284
100
58
120
19
5
100
D Ø Knurl Dia.
