Magnetic Vee Blocks
Characteristics
Our precision Magnetic Vee Blocks are highly versatile and accurate. All working surfaces are precision ground flat to an accuracy of +/- 5 microns.
Parallelism & Squareness of all faces & "V" within + 0.0003". Useful for holding cylindrical workpieces securely in place as well as for measuring, scribing and processing of workpieces. The Magnetic Vee Block can be used either way up, standing on end, or two in a line. It can magnetically hold the workpiece and itself to any flat ferrous surface. Turning the toggle which is in front of the Vee Block energizes and de-energizes the vees and faces simultaneously.
Available in single as well as matched and numbered pairs.
Available in single as well as matched and numbered pairs.

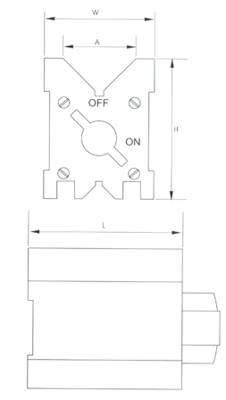

Technical Data
Pair Soft
|
Pair Harded |
Order NR Soft Single PC |
Order NR Harded Single PC |
Length |
Width |
Height |
Clamping |
Net Weight
Kgs. |
||||
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
|||||
111552 |
111553 |
111550 |
111551 |
2.5/4 |
70 |
2 |
50 |
2.9/16 | 65 |
1.1/2 |
38 |
.50 |
111557 |
111558 |
111555 |
111556 |
3.3/16 |
80 |
2.3/8 |
60 |
2.3/4 | 70 |
1.7/8 |
48 |
.90 |
111562 |
111263 |
111560 |
111561 |
4 |
100 |
3 |
75 |
3.3/4 | 95 |
2.1/2 |
62 |
1.30 |
111567 |
111268 |
111565 |
111566 |
6 |
150 |
3 |
75 |
3.3/4 | 95 |
2.1/2 |
62 |
|
111572 |
111273 |
111570 |
111571 |
8 |
200 |
4 |
100 |
6 |
150 |
3.9/16 |
90 |
|
