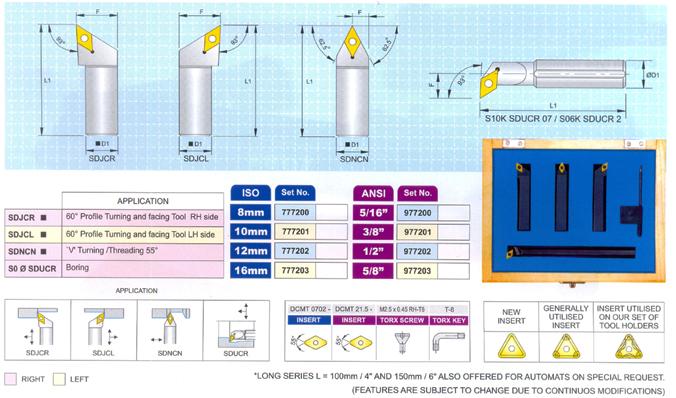

MINI TURNING TOOLS (DCMT)
WE HAVE SELECTED THIS SET OF MINI TURNING TOOLS CAREFULLY TO COVER WIDE RANGE OF TURNING APPLICATIONS USING SINGLE TYPE OF INDEXABLE CARBIDE INSERT (DCMT 070204) (DCMT 21.5 - )

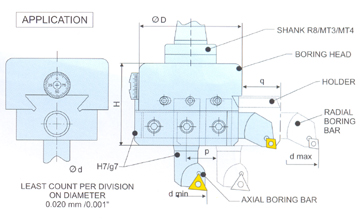

AXIAL & RADIAL BORING BARS FOR BORING HEADS
Detail for Axial & Radial Boring Bar Sets
Ordering No. |
Sizes of Shanks |
No. of Pcs. in Sets
|
||
Inch |
mm |
Inch |
mm |
|
742100 |
942100 |
10 |
3/8 |
1 Pc. Radial Boring Bar+3 Pes. Axial Boring Bar |
74210 |
942120 |
12 |
1/2 |
1 Pc. Radial Boring Bar+3 Pes. Axial Boring Bar |
742160 |
942120 |
16 |
5/8 |
1 Pc. Radial Boring Bar+4 Pes. Axial Boring Bar |
742200 |
942200 |
20 |
3/4 |
1 Pc. Radial Boring Bar+4 Pes. Axial Boring Bar |
742250 |
942250 |
25 |
1 |
1 Pc. Radial Boring Bar+4 Pes. Axial Boring Bar |
Technical Detail of SOBA Precision Boring Head
Ordering No. |
Boring Head Dia. |
Overall |
Boring Bar Hole |
Centre Distance Between Hole |
Cross Hole Size Ø |
Slide Radial Travel |
Minimum Bore |
Maximum Bore |
Mounting Thread |
Least Count (Microns) |
Net. Weight Kg. |
||||||||||
Metric |
Imperial |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
||
170050 |
170049 |
1-3/16 |
30 |
1-9/16 |
40 |
1/4 |
6 |
3/8 |
9 |
1/4 |
6 |
5/16 |
8 |
1/4 |
6 |
1-3/4 |
45 |
10 x 1.5 (mm) |
.001 |
.002 |
0.300 |
170060 |
170059 |
1-1/2 |
38 |
1-3/4 |
45 |
5/16 |
8 |
7/16 |
11 |
5/16 |
8 |
7/16 |
11 |
5/16 |
8 |
2-3/8 |
60 |
14 x 1 (mm) |
.001 |
.002 |
.0400 |
170070 |
170069 |
1-3/4 |
45 |
2 |
50 |
3/8 |
10 |
19/32 |
15 |
3/8 |
10 |
5/8 |
16 |
3/8 |
10 |
3-3/16 |
80 |
7/8 x 20 (inch) |
.001 |
0.02 |
0.700 |
170080 |
170079 |
2 |
50 |
2-3/8 |
60 |
3/8 |
10 |
5/8 |
16 |
3/8 |
10 |
3/4 |
19 |
3/8 |
10 |
4 |
100 |
7/8 x 20 (inch) |
.001 |
0.02 |
1.250 |
170090 |
170089 |
2 |
50 |
2-3/8 |
60 |
1/2 |
12 |
5/8 |
16 |
1/2 |
12 |
3/4 |
19 |
3/8 |
10 |
4 |
100 |
1-1/2 x 18 (inch) |
.001 |
0.02 |
1.250 |
170100 |
170099 |
3 |
75 |
3-3/16 |
80 |
3/4 |
20 |
15/16 |
24 |
3/4 |
20 |
1 |
25 |
3/8 |
10 |
9 |
220 |
1-1/2 x 18 (inch) |
.001 |
0.02 |
2.800 |
170110 |
170109 |
4 |
100 |
3-3/4 |
95 |
1 |
25 |
1 |
25 |
1 |
25 |
1-5/8 |
41 |
3/8 |
10 |
10 |
250 |
1-1/2 x 18 (inch) |
.001 |
0.02 |
4.400 |
