Air Operated Angle Clamp

Air Operated Angle Clamp
Air Operated Angle Clamp

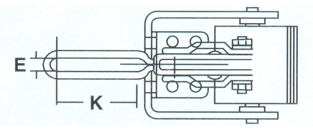

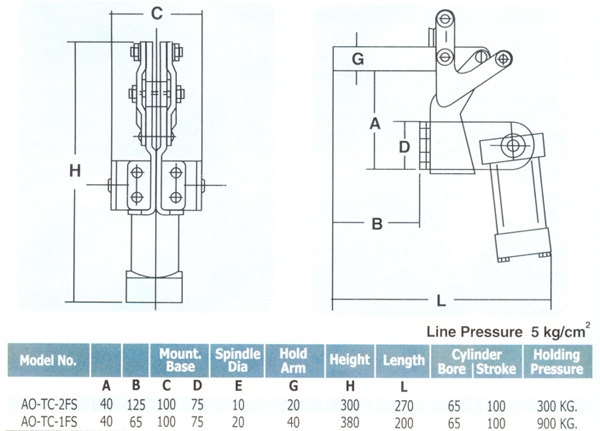

Right Angle Hold Down Clamp

These clamp has arm at right angle cylinder. It could be used where space dictates applications such as rotary indexing table and injection molding fixtures. this model offers a particular advantage that is it could be mounted either on the side or top of the fixture.
The clamp can also to be mounted with the cylinder horizontal in which the hold-down bar ppulls back towards itself. Double acting cylinder with built in speed controls for smooth operations.
Bar arms opens full 90 degree for easy part loading and unloading.



Air Operated Angle Clamp, Right Angle Hold Down Clamp

Air Operated Angle Clamp, Right Angle Hold Down Clamp
