Mould Clamp With Heavy Support Bolt

Mould Clamp With Heavy Support Bolt
Mould Clamp with Heavy Support Bolt [Product Type: PMCH]


Material: Medium carbon steel, heat treated to 8.8 grade
Mould Clamp With Heavy Support Bolt, Heavy Support Bolt Mould Clamps, Clamping Elements, Mumbai, India
Mould Clamp With Heavy Support Bolt, Heavy Support Bolt Mould Clamps, Clamping Elements, Mumbai, India

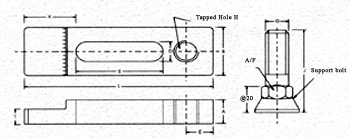

Type

Bolt
Size

A

B

D X L

S

T

K

H

E

Support Bolt

G X J

Hex A/F
 X Base

PMCH-12115S

M12

24

38

14X115

65

15

20

M16

15

M16X55L

19X35

PMCH-12115L

M12

24

38

14X115

65

15

20

M16

15

M16X90L

19X35

PMCH-16130S

M16

31

48

18X130

70

20

25

M20

18

M20X60L

24X40

PMCH-16130L

M16

31

48

18X130

70

20

25

M20

18

M20X90L

24X40

PMCH-16160S

M16

31

48

18X160

90

20

30

M20

20

M20X60L

24X40

PMCH-16160L

M16

31

48

18X160

90

20

30

M20

20

M20X90L

24X40

PMCH-20140S

M20

38

60

22X140

70

25

35

M24

18

M24X60L

27X50

PMCH-20140L

M20

38

60

22X140

70

25

35

M24

18

M24X100L

27X50

PMCH-20160S

M20

38

60

22X160

90

30

35

M24

20

M24X60L

27X50

PMCH-20160L

M20

45

60

22X160

90

30

35

M24

18

M24X100L

27X50

PMCH-20200

M20

45

60

22X200

110

30

45

M24

22

M24X100L

27X50

PMCH-24200

M24

48

78

26X200

105

35

45

M27

25

M27X100L

30X55
