Universal Cutter Grinder

Order No.U2 Code No. 1022-001
Universal Cutter Grinder

For grinding HSS and cabide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiused cutters or negative taper angle of cutters. The universal index head is provided at 24 position so that any particular angle or shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills. Twist Drill. Lathe Tools, only replace the attachment to the index head without any complex setup.

Technical Data

Max. Collet capacity Ø18mm
Max. Grinding dia. Ø25mm
Taper angle 0°-180°
Relief angle 0°-45°
Negative angle 0°-26°
Grinding spindle 3600 r.p.m.
Cup grinding wheel 100x50x20mm
Motor 1/3Hp 220V50/60Hz, please notify volt & phase
Net weight 45kgs
G.w. : 58kgs
Machine dimensions (LxWxH) 45x40x35cm
Packing Dimensions (LxWxH) 55x45x47cm



Standard Accessory Included

* Wheel dresser with diamond - 1 pc
* Wheel flange (mounted)       - 1 pc
* Grinding wheel                    - 1 pc (U2-G)
* Collect Ø4, 6, 8, 10, 12 mm  - 5 pc
* Aligning finger                     - 1 pc
* Drive belt (U2-B)                 - 1 pc (U2-B)
* Lock pin                              - 1 pc
* Tools                                  - 1 set



Order No.
Code No.
U2-E
1022-010
U2-T
1022-011
U2-L
1022-012
U2-D #100
1022-013
U2-B BELT
1022-014
U2-C CABINET
1022-015
U2-G-WHEEL
1022-016
u2-R # 200
1022-017
U2--R-1#400
1022-017-1

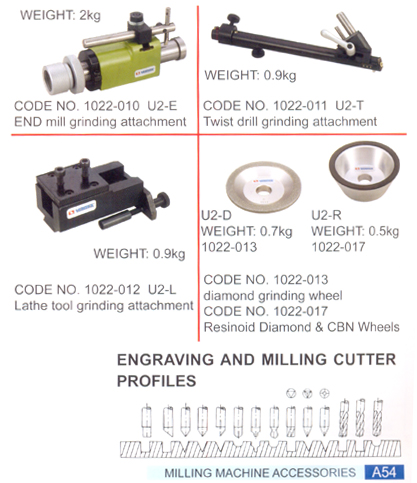

Optional Accessory

* Twist drill grinding attatchment U2-T
* END milll grinding attatchment U2-E
* Lathe tool grinding attatchment U2-L
* Grinding wheel balancing stand LBS-100 Code No. 2014-010
* Diamond grinding wheel U2-D
* Resinoid Diamond & CBN wheel U2-R
* Collect (extra 1, 2, 2.5, 3, 5, 7, 9, 16, 18, 20, 25mm and 1/8",    3/16", 1/4", 5/16", 3/8", 1/2" 5/8")
   Detail specification & order No. shown on page U2 collet.
