Air Operated Straight Line Toggle Clamp

Air Operated Toggle Clamps, Manufacturing of Clamping Elements, Vertical Handle Clamp, Mumbai, India

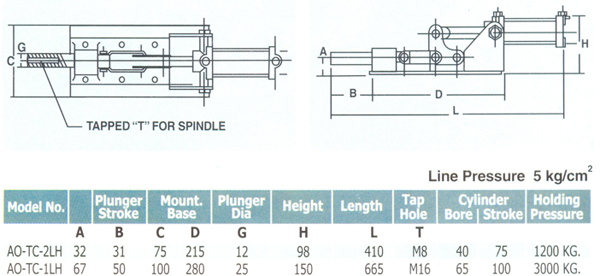

Air Operated Straight Line Toggle Clamp


AO-TC _1 LH

Chamunda's straight line action horizontal toggle clamp has 25 mm diameter plunger is drilled and tapped for M16 X 1.5 spindle plunger travels 50 mm and oves into mechanical lock in the extended position.
All cylinders are double action

AO-TC-1 LH

This model has a 12 mm dia. plunger which is drilled and tapped for a M8X1.25 spindle. The plunger Travels 30 mm. and moves into a mechanical lock in the extended position.
