Punch Former

Punch Former

* Punch former is the fixture to grind the point of standard punches    and E.D.M. electrodes for precise and fast operation.

* Besides the round, radius and multiangle punches, any special    forms can be ground precisely.

* By using this attachment, it can be ground either con cave or    convex radius shape.

* The capacity is from 4mm to 30mm.
   Punch Former is the great dressing instrument. Precision.forming    of grinding wheel can be done by sembling an ARM with the main    body. Any combination of tangents or radial form of the grinding    wheel may dressed accurately by easy operation.

* Max. diameter of grinding wheel within 200m/m can dressed     accurately and safely. The height from base roller's center is     80m/m. Movement of each side can reach 12.5m/m while aiming     at the center of V block The main body is made of one piece     steel constrution.





Punch Former

Specification

D(diameter)of the pressed part of the punch ... 4-30mm
L(length)of the pressed part of the punch ... above22mm
Upper and lower movement span of V block .............. 25mm
Horizontal movement span of V block(one side) .. 12. 5mm
                                                            (tow side) 25mm
Length of V block ..................................................30mm
Height of the rotary central axis ................................ 15mm
Cutting and dividing ............................ 24 equal pieces(15")
Sand forming of the forming lever
(concave R) ........................................................ 100mmR
(convex R) ........................................................... 48mmR

Diamond sharpening knife
(small diameter)60x50(1/1Ocarat)
(large diameter)1OOx50(1/4carat)
*Except for the handle and graduation scale all is special hard tool steel (SKS-2) heat treated at 63
* V block can be disassembled for use separately.
V-PS the center through hole is Ø30m/m

V-PS can pass through from itself to the center
of grip, in case of facing a more longer punch
ejector pin, it can go deep into of the grip position directly. To assemble an ARM with the main body, any combination of radial form of the grinding wheel may be dressed accurately by easy operation.

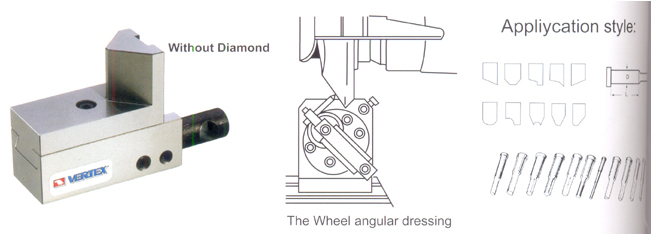

SPECIAL PART ACCESSOR FOR ANGULAR DRESSING
ORDER NO.V-PF             CODE NO.2001-020
WEIGHTO.7KG
